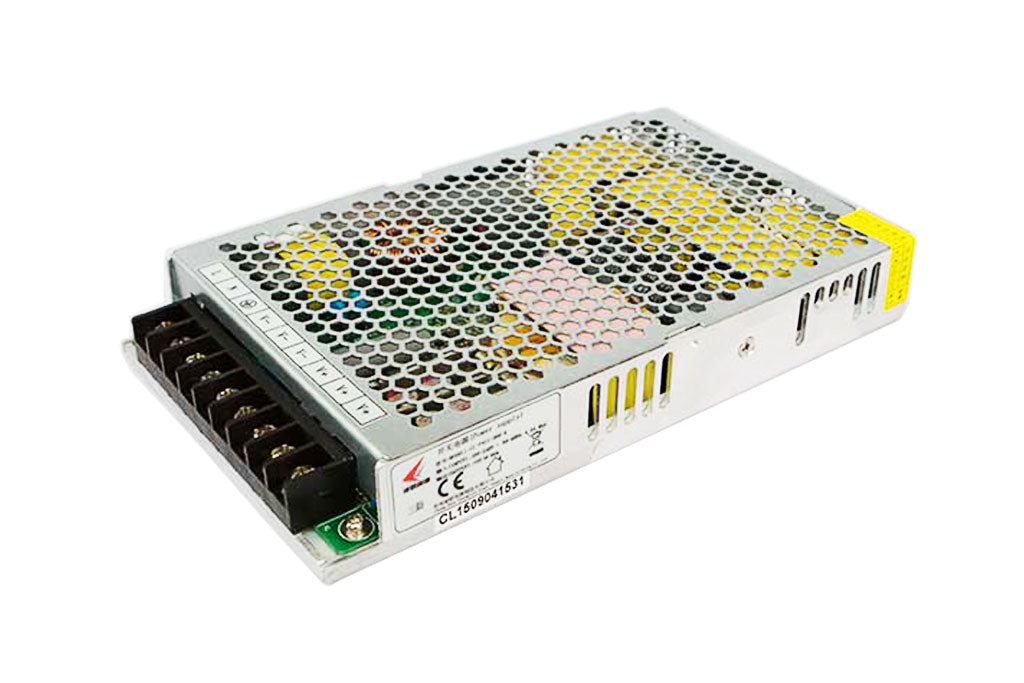

CL LED Displays Power Supply 300W PAS1-300-5 Series, LED Power Supply

CL LED Displays Power Supply 300W PAS1-300-5 series Features:

Input Parameter:

• Input Voltage Range: 90～264Vac
• Input Frequency Range: 47～63HZ(Typ 50/60)
• Max AC Current: <4.5A, 100Vac, full load
• Inrush current: ≤90A, 240V, Full load, 25℃
• PF >0.95(AC100~240Vac, full load)
• Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ)

Output Parameter:

• Dc Voltage Range: 5V(7.5V/4.5V/4.2V/3.8V/2.8V is available too)
• Rated Current: 0-60A
• Max power:300W
• Ripple & Noise: ≤150mVp-P
• Efficiency (Typ):85%(Typ 87.5%) Vin=110V Full load,25℃,   87.5%(Typ 89%) Vin=230V, full load, 25℃
• Voltage Tolerance:±2%
• Line Regulation: ±1%
• Load Regulation:±2%

Protection：

• Over voltage protection: 5.5-6.0V
• Over current protection: 65-85A
• Over temperature protection: 65-85℃,  full load 25℃.
• Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed
• Under voltage protection: 75-85Vac, recovery value: 80-90Vac

Safety Standards:

• UL60950, IEC/EN60950, GB4943.1-2011

EMC：

• FCC Part 15 B,EN55022(CISSPR22)ClassB,EN61000-3-2,EN61000-3-1，

EMI:

• EN61000-4-2,3,4,5,6,8,11, EN55024  Light industry Class A（Surge 4KV）
• Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S
• Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc
• Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz)

Others:

• Working Temperature:‘-30℃ ～ +70℃
• Working Humidity:5%～90%RH
• Storage temperature: -40℃～+80℃
• Free air convection
• Dimension (L*W*H): 200*115*30mm
• Carton Dimension: 40*31*18.5 cm
• Packing:0.91KG/16PCS/16.0KG/0.04CBM
• MTBF:150K hours (MIL-HDBK-217F (25℃ )
• 3 years warranty
• TUV CE
