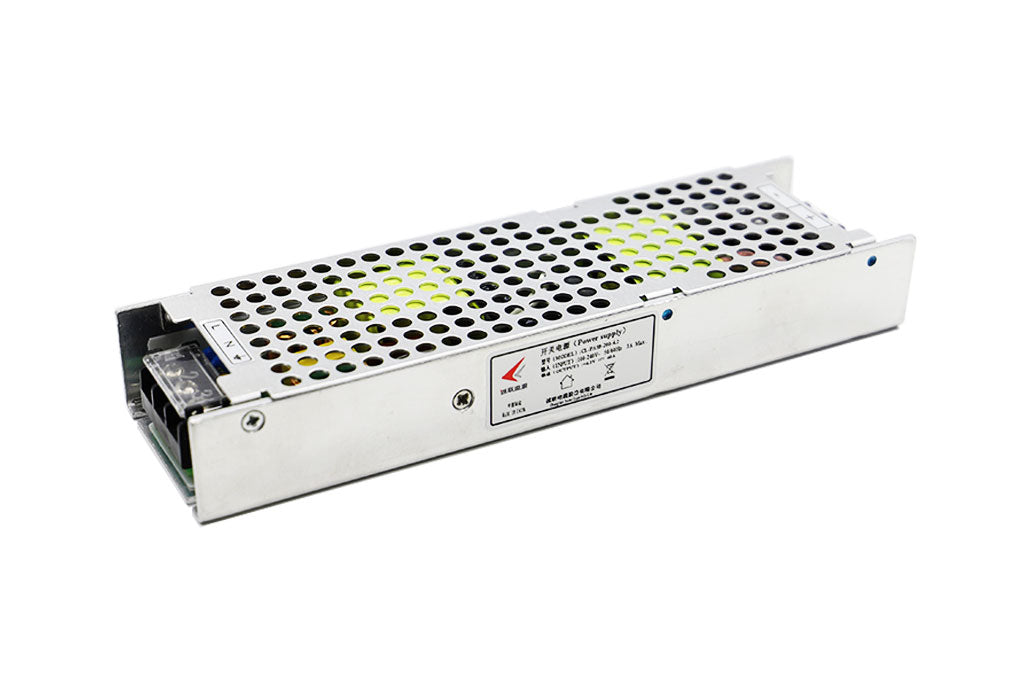

CL LED Displays Power Supply 200W PAS9-200-5 series
CL LED Displays Power Supply 200W PAS9-200-5 series
Regular price
$38.00 USD
Regular price
$50.00 USD
Sale price
$38.00 USD
Unit price
/
per
CL LED Displays Power Supply 200W PAS9 series Features:
Input Parameter:
- Input Voltage Range: 90~264Vac
- Input Frequency Range: 47~63HZ(Typ 50/60)
- Max AC Current: <3.5A, 100Vac, full load
- Inrush current: ≤60A, 240V, Full load, 25℃ cold start
- PF >0.95(230Vac, 40A)
- Standby watt<5W
Output Parameter:
- Dc Voltage Range: 5V
- Output voltage range: 4.85~5.15
- Rated Current: 1-40A
- Max power: 200W
- Ripple & Noise: ≤200mVp-P
- Efficiency (Typ):87%(Typ 88%) Vin=115V rated load,25℃,
- 91%(Typ 91.5%) Vin=230V, rated load, 25℃
- Voltage Tolerance:±2%
- Line Regulation: ±1%
- Load Regulation:±2%
Protection:
- Over voltage protection: 5.5-6.0V
- Over current protection: 45-60A
- Over temperature protection: 65-85℃, full load 25℃.
- Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed
Safety Standards:
-
UL60950,IEC/EN60950 ,GB4943.1-2011
EMC:
-
FCC Part 15A,EN55022 (CISSPR22) ClassA, EN61000-3-2,EN61000-3-2
EMI:
-
EN61000-4-2,3,4,5,6,8,11, EN55024 Light industry Class A(Surge 4KV)
- Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S
- Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc
- Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz)
Others:
- Working Temperature:‘-40℃ ~ +65℃
- Working Humidity:5%~90%RH
- Storage temperature: -40℃~+80℃
- Free air convection
- Dimension (L*W*H):208*59*31mm
- Carton Dimension: 42.3*27.3*27.5CM
- Packing:30PCS/17KG/0.03CBM
- MTBF:100K hours (MIL-HDBK-217F (25℃ )
- 3 years warranty
- TUV CE
