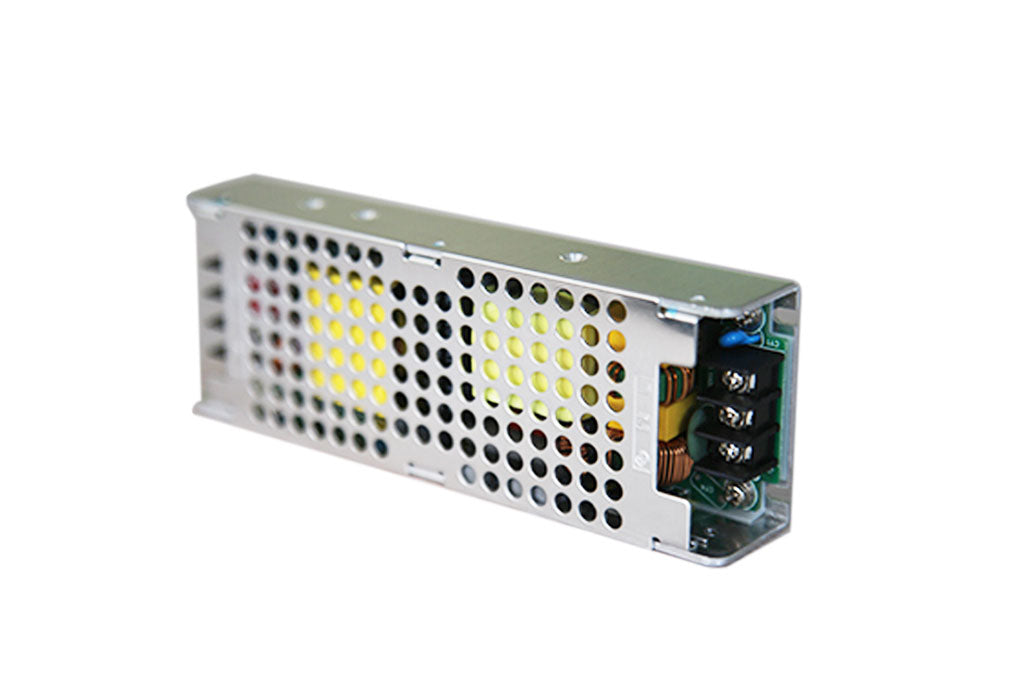

CL LED Displays Power Supply 200W PAS7-200-5 series

CL LED Displays Power Supply 400W PAS5 series Features:

Input Parameter:

• Input Voltage Range: 90～264Vac
• Input Frequency Range: 47～63HZ(Typ 50/60)
• Max AC Current: <2.5A, 100Vac, full load
• Inrush current: ≤90A, 240V, Full load, 25℃
• PF >0.95(AC100~240Vac, full load)
• Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ)
• Standby watt<5W

Output Parameter:

• Dc Voltage Range: 4.5 V( 4.2V is available too)
• DC output voltage range: 4.2-4.8VDC
• Output Current: 90-175Vac, 25A( NO Auxiliary heat sink), 176-264Vac, 30A( NO Auxiliary heat sink), 90V-175Vac, 30A( installed an Auxiliary heat sink at the bottom of power supply, 300*200*3mm AL panel), 176-264Vac, 40A(installed an Auxiliary heat sink at the bottom of power supply, 300*200*3mm AL panel)
• Max power:184W
• Ripple & Noise: ≤500mVp-P（@220Vac, rated load,25℃）
• Efficiency (Typ): ≥88.5%（Typ 90%) input Voltage: 230Vac, Rated load,25℃;         ≥86%（Typ 87.5%),input voltage: 115Vac, Rated load,25℃
• Output Risetime<50mS
• Power on delay time<3S
• Voltage Tolerance:±2%
• Line Regulation: ±1%
• Load Regulation:±2%

Protection：

• Over current protection: 50-70A
• Over temperature protection: 75-90℃,  full load 25℃.
• Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed

Safety Standards:

• UL60950, IEC/EN60950, GB4943.1

EMC：

• FCC Part 15A EN55022(CISSPR22)ClassA,EN61000-3-2（Differential mode ± 2kV, common mode ± 4kV）

EMI:

• EN61000-4-2,3,4,5,6,8,11, EN55024 Class A light industry standard (Surge: 4KV)
• Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S
• Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc
• Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz)

Others:

• Working Temperature:‘-20℃ ～ +70℃
• Working Humidity:5%～90%RH
• Storage temperature: -40℃～+80℃
• Free air convection
• Dimension (L*W*H):167*59*31mm
• Carton Dimension: 52*37.5*24CM
• Packing:40PCS/21.5KG/0.04CBM, in white paper box
• MTBF:50K hours (MIL-HDBK-217F (25℃ )
• 3 years warranty
