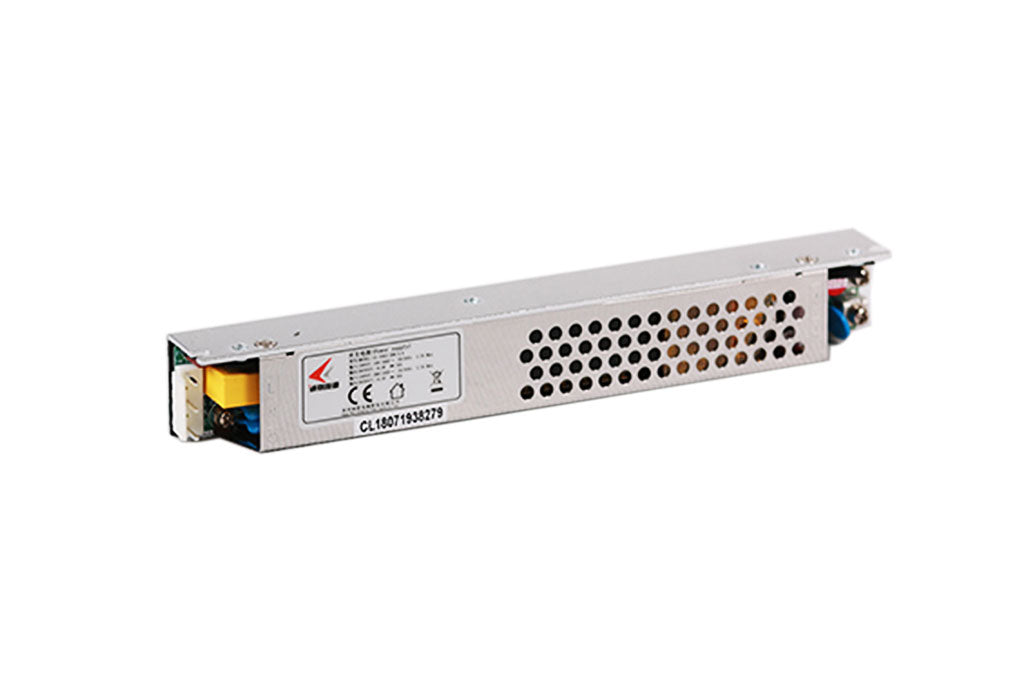

CL LED Displays Power Supply 200W PAS2-200-5 series, Customized for transparent LED Display screens

CL LED Displays Power Supply 200W PAS2-200-5 series, Customized for transparent LED Display screens

Regular price $55.00 USD
Regular price $90.00 USD Sale price $55.00 USD
Sale Sold out
Shipping calculated at checkout.

CL LED Displays Power Supply 200W PAS2 series Features:

Input Parameter:

  • Input Voltage Range: 90~264Vac
  • Input Frequency Range: 47~63HZ(Typ 50/60)
  • Max AC Current: <2.5A, 100Vac, full load
  • Inrush current: ≤90A, 240V, Full load, 25℃
  • PF >0.95(AC100~240Vac, full load)
  • Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ)
  • Standby watt<5W

Output Parameter:

  • Dc Voltage Range: 4.6 V(5V/4.2V is available too)
  • Output voltage adjustment range: DC 4.5~4.7V
  • Output Current: : 90-175Vac, 20A( NO Auxiliary heat sink), 176-264Vac, 30A( NO Auxiliary heat sink), 90V-175Vac, 30A( installed an Auxiliary heat sink at the bottom of power supply, 300*200*3mm AL panel), 176-264Vac, 40A(installed an Auxiliary heat sink at the bottom of power supply, 300*200*3mm AL panel)
  • Max power:184W
  • Ripple & Noise: ≤150mVp-P(@220Vac, rated load,25℃)
  • Efficiency (Typ): ≥88%(Typ 90.5%) input Voltage: 230Vac, Rated load,25℃; ≥86%(Typ 88.5%,input voltage: 115Vac, Rated load,25℃
  • Output Risetime<50mS
  • Power on delay time<3S
  • Voltage Tolerance:±2%
  • Line Regulation: ±1%
  • Load Regulation:±2%

Protection:

  • Over voltage protection: 5-5.5V
  • Over current protection: 50-70A
  • Over temperature protection: 65-85℃,  full load 25℃.
  • Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed

Safety Standards:

  • UL60950, IEC/EN60950, GB4943.1-2011

EMC:

  • FCC Part 15 B,EN55022(CISSPR22)ClassB,EN61000-3-2,EN61000-3-2

EMI:

  • EN61000-4-2,3,4,5,6,8,11,Surge Vcom: ±2kV   VDiff: ±4kV
  • Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S
  • Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc
  • Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz)

Others:

  • Working Temperature:‘-20℃ ~ +70℃
  • Working Humidity:5%~90%RH
  • Storage temperature: -40℃~+80℃
  • Free air convection
  • Dimension (L*W*H): 210*30*25mm
  • Carton Dimension: 40*31*18.5 cm
  • Packing: 0.3KG/16.5KG/0.04CBM/CTN
  • MTBF:100K hours (MIL-HDBK-217F (25℃ )
  • 3 years warranty
