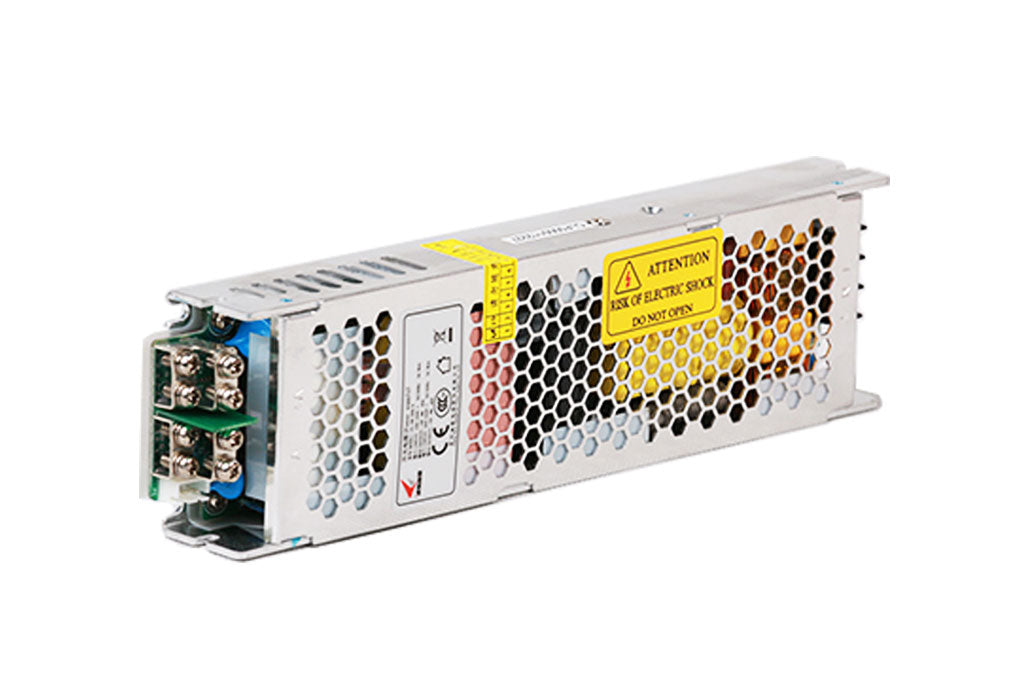

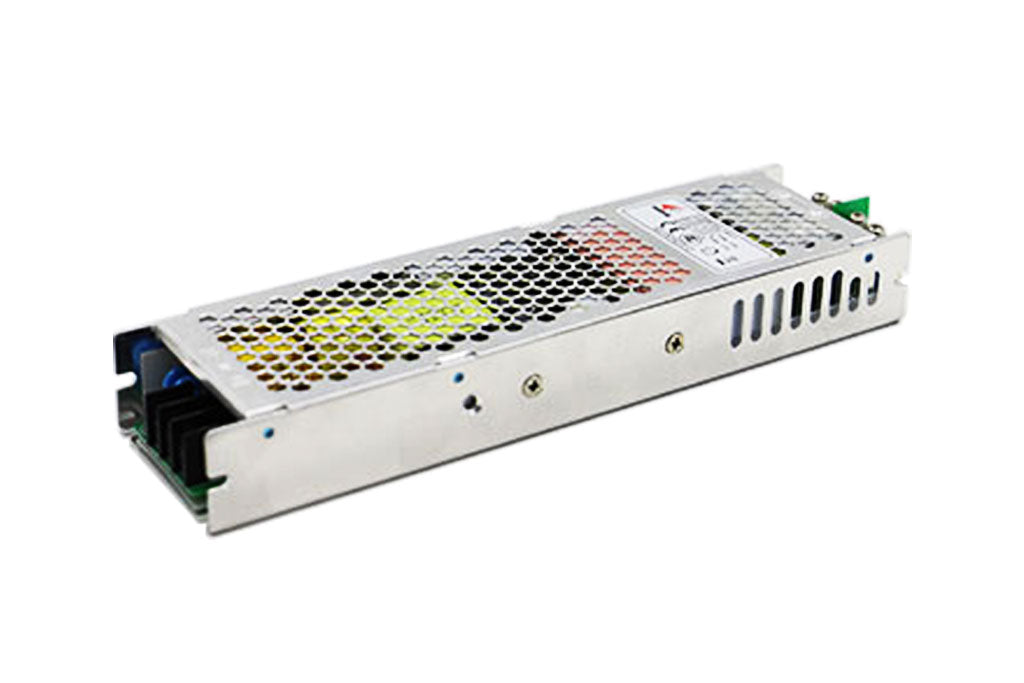

CL LED Displays Power Supply 200W OR-200-5 Parallel Current sharing N+1 backup

CL LED Displays Power Supply 200W OR-200-5 Parallel Current sharing N+1 backup

Regular price $45.00 USD
Regular price $80.00 USD Sale price $45.00 USD
Sale Sold out
Shipping calculated at checkout.

CL LED Displays Power Supply 200W CL-OR-200-5 series Features:

Input Parameter:

  • Input Voltage Range: 90~264Vac
  • Input Frequency Range: 47~63HZ(Typ 50/60)
  • Max AC Current: <3A, 100Vac, full load
  • Inrush current: ≤90A, 240V, Full load, 25℃
  • PF >0.92(AC100~240Vac, full load)
  • Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=240Vac 60HZ)

Output Parameter:

  • Dc Voltage Range: 5V
  • Rated Current: 0-35A
  • Max power: 200W
  • Ripple & Noise: ≤400mVp-P
  • Efficiency (Typ):85%(Typ 86.5%) Vin=115V Full load,25℃,  87%(Typ 88.5%) Vin=230V, full load, 25℃
  • Voltage Tolerance:±4%
  • Line Regulation: ±1%
  • Load Regulation:±2%

Current-sharing characteristics:

Output current and Output current-sharing female voltage:

output current 0A 10A 20A 30A 40A
current-sharing female voltage -0.5~+0.5V 1.25±0.5V 2.5±0.5V 3.75±0.5V 5±0.5V

PS: all the female output cables need be connected in parallel. more details, pls contact with us.

Protection:

  • Over voltage protection: 5.4-6.0V
  • Over current protection: 55-80A
  • Over temperature protection: 65-85℃,  full load 25℃.
  • Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed

Safety Standards:

  • UL60950,IEC/EN60950 ,GB4943.1-2011

EMC:

  • FCC Part 15A,EN55022 (CISSPR22) ClassA, EN61000-3-2,EN61000-3-2

EMI:

  • EN61000-4-2,3,4,5,6,8,11, EN55024 Light industry Class A(Surge 4KV)

  • Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S
  • Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc
  • Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz)

Others:

  • Working Temperature:‘-30℃ ~ +70℃
  • Working Humidity:5%~90%RH
  • Storage temperature: -40℃~+70℃
  • Free air convection
  • Dimension (L*W*H):220*60*30mm
  • Carton Dimension: 42.3*27.3*27.5CM
  • Packing:30PCS/17KG/0.03CBM
  • MTBF:100K hours (MIL-HDBK-217F (25℃ )
  • 3 years warranty
  • TUV CE
