BOE COB Series Indoor P1.56 Small Pitch LED Displays Cabinet
BOE COB Series Indoor P1.56 Small Pitch LED Displays Cabinet
Couldn't load pickup availability
BOE COB Series
P1.56 indoor small-pitch led display adopts high-quality lamp beads, physical density of 410207dot/㎡, interface mode HUB75, maximum power up to 1160w/㎡, novel mask settings, color mixing more uniform, high-density pixels to make the picture clearer wider viewing angle, high resolution to bring high-definition and detailed display effect, flicker-free, no particulate sense.
P1.56 HD indoor small pitch led display is suitable for broadcasting and television stations, advanced video conference, digital exhibition hall, monitoring and command center, performing arts hall, experimental teaching classroom, cinema, shopping malls, hotels, specialty stores and other places. With high definition display, high refresh frequency, seamless splicing, good heat dissipation system, easy and flexible disassembly and installation, it provides customers with high-quality display services in information dissemination, brand publicity and advertising effect.
-
Ultra-small pitch, high pixel density high-definition LED display, suitable for indoor ultra-high-definition close viewing display
-
Wide color gamut, uniform color, high contrast ratio, high gray and high brush, radio and television level super stability (power double backup)
-
Advanced COB full flip-flop process and high quality components ensure its excellent high gray scale and high refresh rate
-
160 ° ultra-wide viewing angle, so that the viewer can get a high-quality display at all angles
-

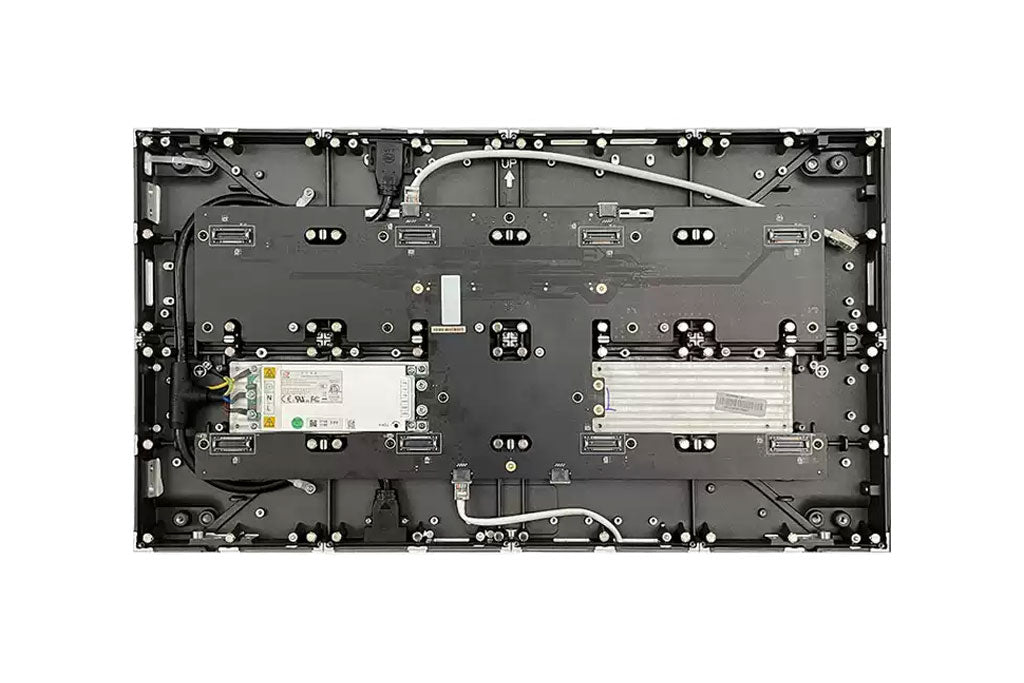

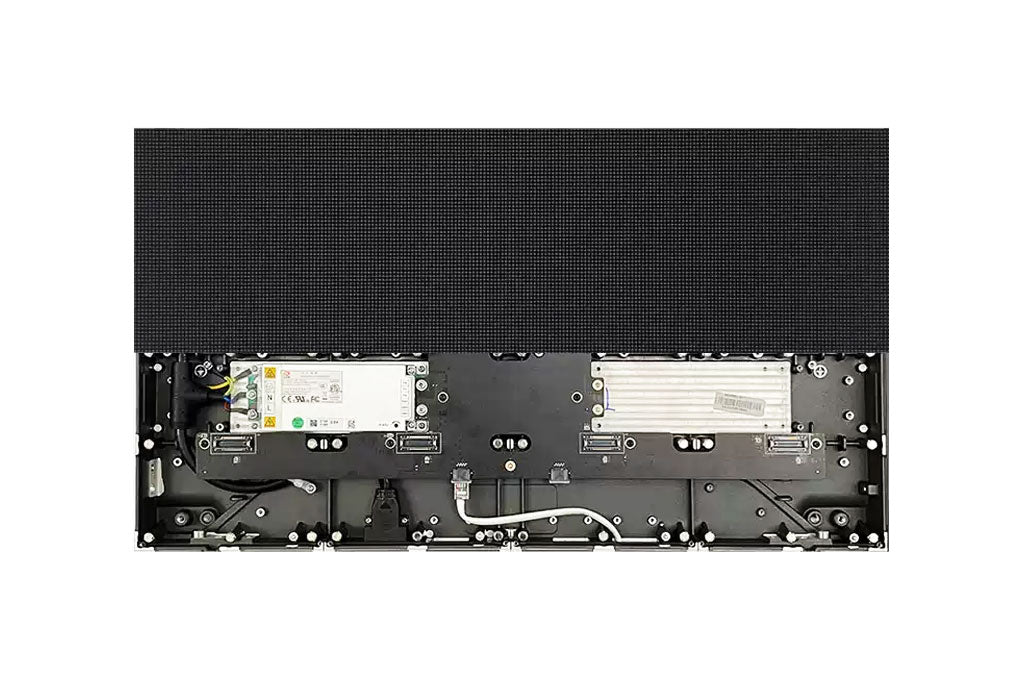

Modularized design with integrated receiver card and stable power connection. Can be spliced in any direction, any size, any shape, presenting a perfect seamless visual effect
-

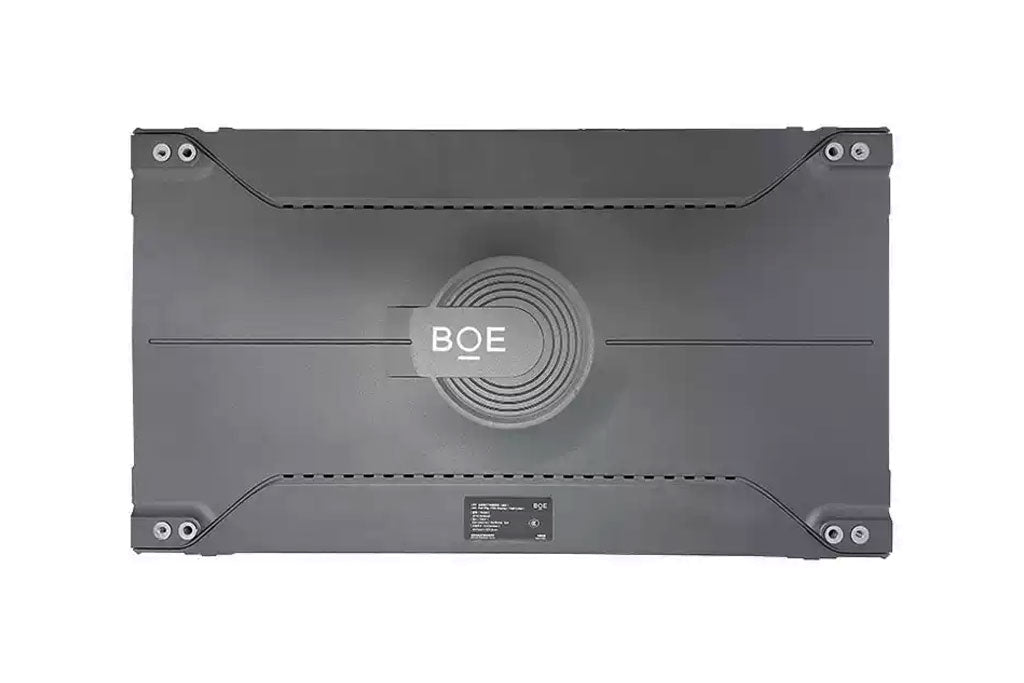

Integral die-casting aluminum frame design, the screen body is ultra-light, ultra-thin, space-saving, cost-saving and stylish
-
The use of die-casting aluminum material improves heat dissipation performance and extends the service life of the cabinet
-
Easy debugging and assembling by one person, less wiring harness, low maintenance cost.

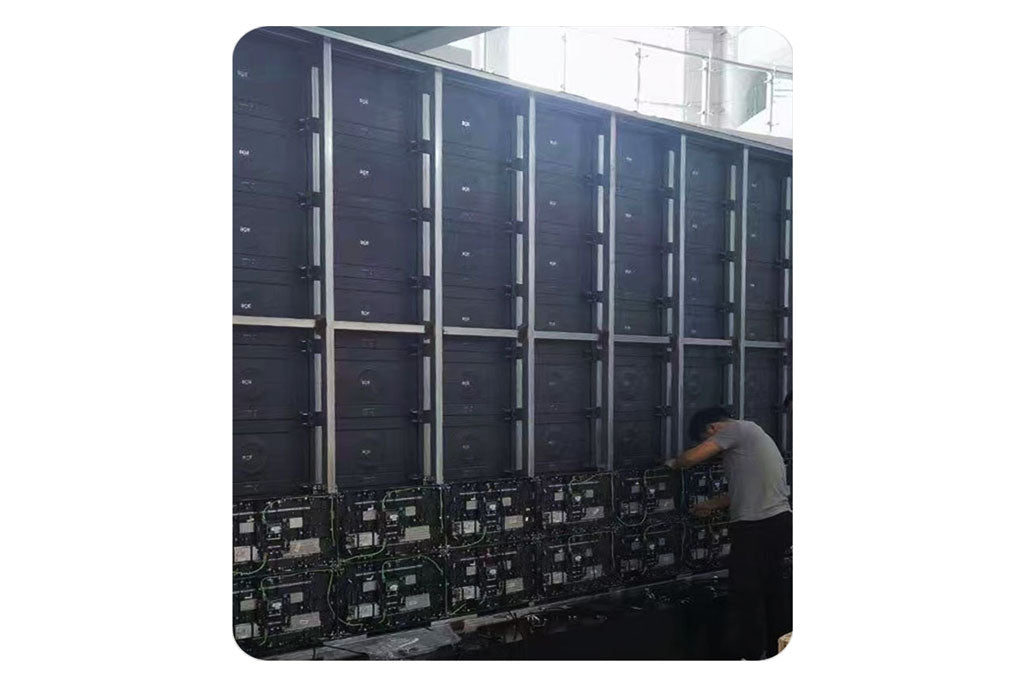

BOE COB Series Small Pitch LED Display installations
Simple installation, dedicated safe.
BOE COB Series Small Pitch LED Display Parameters
Pixel Pitch: 1.56mm
Physical density: 410207dot/㎡
Module Resolution: 128dots(w)*108dots(h)
Module size: 200mm*168.5mm
Cabinet size: 600mm*337.5mm
Cabinet resolution: 384dot*216dot
Maximum power: ≤1160w/㎡
Input voltage: 220VAC±15%
Optimal viewing distance: ≥2m
Notice before order:
1) Parts included : High-quality steel cabinets, LED modules, power supplies, LED receiving card, power cables and signal cables. It does not include sending card.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
Contact an expert immediately to request a quote for the application.
